Quick Details:

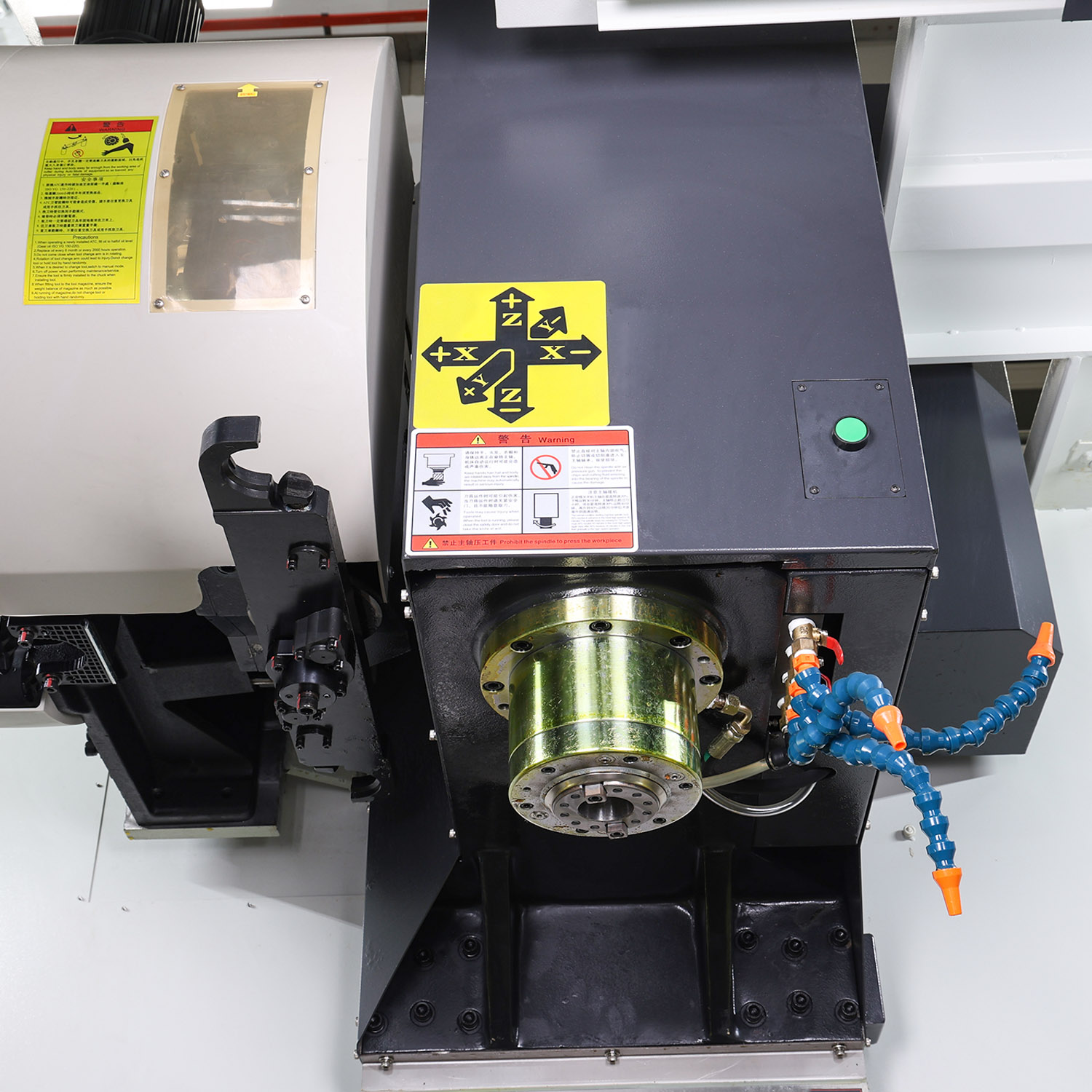

VMC850SL machine cnc milling
On the basis of inheriting the advantages of strong rigidity, symmetrical structure, and strong stability of the traditional machining center machine tool foundation frame, the vertical high-speed machining center has introduced internationally advanced dynamic rigid design concepts and optimized the design of moving components. Machine tools have high torque and excellent fast response characteristics, suitable for various mechanical processing fields such as automobiles, molds, aerospace, military, hardware, etc.
Model | VMC-850SL | |
Workbench | Workbench size | 900×450mm |
Worktable load-bearing | 450kg | |
T-groove width | 5-18/90mm | |
Processing scope | X axis travel | 800mm |
Y axis travel | 500mm | |
Z axis travel | 550mm | |
Distance from spindle end face to workbench | 120-670mm | |
Main spindle | Cone hole model | BT40 |
Pulling nail specifications | P40T-I（MAS403） | |
Speed range | 10-12000rpm | |
Feed | Cutting feed speed range | 10m/min |
X-axis rapid movement | 36m/min | |
Y-axis rapid movement | 36m/min | |
Z-axis rapid movement | 36m/min | |
System configuration | FANUC Oi MF | |
Motor configuration | X-axis motor | biS22/3000 |
Y-axis motor | biS22/3000 | |
Z-axis motor | biS22B/3000 | |
Spindle motor | biI12/12000SP | |
Accessory | Three axis guide rail specifications（XYZ） | X-axis 2-35 # roller track |
Y-axis 2-35 # roller track | ||
Z-axis 2-35 # roller track | ||
Three-axis screw rod specification（XYZ） | XaxisΦ40/16 | |
YaxisΦ40/16 | ||
ZaxisΦ40/16 | ||
Bearing specifications | Xaxis30TAC62B | |
Yaxis30TAC62B | ||
Zaxis30TAC62B | ||
Overall dimensions of the host | About 2500X2200X2700mm | |
Machine weight | 5T | |
