Quick Details:
Performance characteristics
◆Machining aperture 0.3-3.0 mm, maximum depth-diameter ratio can reach more than 300:1.
◆Processing speed can reach 5-40 mm per minute, servo stroke 300, can use super-long electrode tube, drug-saving electrode tube 15%.
◆Can process stainless steel, quenched steel, cemented carbide, copper, aluminum and other conductive materials
◆It can penetrate directly from inclined plane and surface.
◆Servo lifting adopts double linear guide rail and electric lifting, which ensures the processing accuracy and speed of products.
◆The spindle adopts two-speed control mode, which can double the speed of back-off and closely track the processing time, so as to realize efficient and stable processing of fine electrodes.
◆Taiwan rotary head processing is stable and leak-free, equipped with high-pressure water pump
◆The X and Y axes of the worktable are equipped with grating digital display, and the operation is accurate.

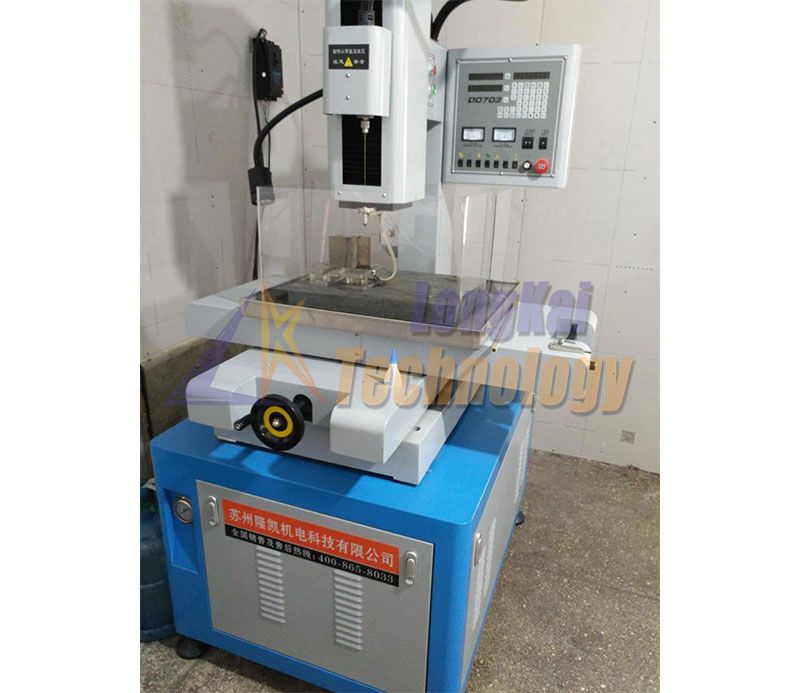

| DK-703 | DD-703 | |
| worktable size | 320*430 | 420*560 |
| worktable travel | 200*300 | 300*400 |
| Spindle head travel | 280 | 300 |
| servo travel | 300 | 300 |
| Electrode diameter | 0.3-3.0 | 0.3-3.0 |
| Max.machining Speed | 40-60 | |
| Max.aspect ratio | 300-1 | |
| Working fluid | running water | |
| Working pressure | 7 | |
| Max. Processing Current | 30 | |
| Max. power consumption | 3 | |
| control mode | Z-Axis Auto. | |
| Digital display mode | Two-axis digital display and optional three-axis digital display | |
